Euro-Multi Excavator from Riebsamen
Euro-Multi Excavator from Riebsamen
Handy powerhouse
Handy powerhouse
Our excavators have teeth!
Our excavators have teeth!
The ideal cemetery excavator
The ideal cemetery excavator
Perfect handling
Perfect handling

E-M excavator / cemetery excavator

Standard equipment

  • Crane hooks
  • Infinite rotary motor with two-shovel grab and ejector
  • Four hydraulic supports, continuously pivotable every 90° / “shoes” for supports

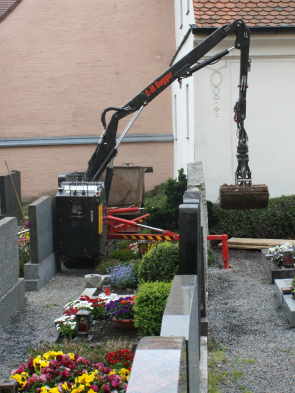

The cemetery excavator

You can navigate even the tightest of alleys with the Riebsamen excavator. Thanks to the freely positionable support feet, the excavator is ready for operation in a matter of minutes and is always securely positioned. The support area of the supporting feet can be made even bigger thanks to its attachment “shoes”. This prevents the excavator from sinking when used on soft ground. Working with the Euro-Multi Excavator is lots of fun thanks to the extremely sensitive remote control. The remote control gives the machine operator access to all of the excavator functions.

Additional equipment

  • Remote control for all excavator functions
  • Hydraulic gauge spacing enlargement 60/90 cm
  • Slope compensation
  • Hydraulic chisel / soil drill
  • 1000 mm excavator arm extension
  • 380 volt electrical drive
  • Infinitely pivoting excavator arm
  • Aluminium ramps
  • Suspension for loading via crane
  • Removable gripper teeth protection

Technical specifications

Weight: 1900 kg
Overall length: 3000 mm
Track width, optional: 600 - 900 mm variable
Overall height: 1950 mm
Overall width (frame): 640 mm
Working arm reach: 5000 mm
Pivoting range: Infinite
Gripper: With rotary motor, bolt-on teeth and ejector
Engine: Kubota Diesel – 26 PS, 3 cylinder with electrical starter, ignition and water-cooling
Shovel volume: 100 Liter
Paint colour: RAL 3002 / 9005

Euro-Multi Excavator load diagram

Optional 6.2 m
Lifting capacity in kg at jib working radius in m

Made in Germany

“Made in Germany” quality
Our excavators are exclusively developed and manufactured in our own workshops by trained specialists in Germany.


Excavators at work
